wh Münzprüfer Dietmar Trenner GmbH: W Universal

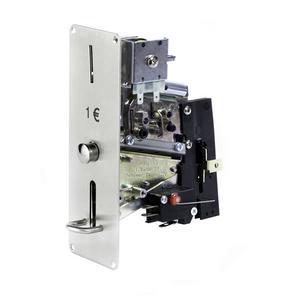

Mechanical coin selector
W Universal

Product description

A classic among mechanical coin selectors, suitable for all machines accepting coins/tokens up to 30 mm diameter and 3.5 mm thickness. This selector is available in a reduced depth (96 mm) version, suitable for applications with limited space. For secure acceptance of 1 and 2 Euro coins a Bi-Color recognition is included.

Highlights

Millions of times proven
For all coins and tokens up to 30 mm in diameter
For over 100 currencies

Product enquiry

Specifications

Front plates for single coin selector
height x width (mm)

B 62.5 x 40

C1 107 x 40

D 117 x 60

H 129 x 52

N 150 x 50 with insert funnel

N1 150 x 50 with insert funnel

Front plates for dual coin selector
height x width (mm)

SF03.2 117 x 60

Components

W = coin selector W Universal
W0 = coin selector W Universal without reject
WK = coin selector short version
Bi = Bi-Color-recognition
A = coin outlet
AF = coin outlet with thread blocking
AFK = coin outlet short
i = Optical switch
S = Micro switch
MS = electromagnetic slot locking mechanism, normally closed
M1 = electromagnetic slot locking mechanism, directly located at the coin insert, normally closed

Voltages: 24, 115 or 230 volts AC, 12 or 24 volts DC

Example for ordering

D-W-AF-S-MS 230 volts AC for 0,50 Euro:
Coin selector W Universal with front plate, 117 x 60 mm with coin outlet and thread blocking, micro switch, electromagnetic slot locking mechanism for 230 volts AC, normally closed, for acceptance of 1 x 0,50 Euro.

B	62.5 x 40
C1	107 x 40
D	117 x 60
H	129 x 52
N	150 x 50 with insert funnel
N1	150 x 50 with insert funnel

SF03.2	117 x 60

Product examples and Accesories

Coin selector with reduced mounting depth H3-WK-AFK-S6R

Coin selector without coin outlet and reject B-WO

Coin selector without coin outlet, with reject C1-Bi-W

Dual coin selector – SF03.2-W-A-S6/-W-A-S6

Mechanical coin selector version E1-WK-AOK-i

Mechanical coin selector version N-WK-AFK-S6H-M1
