wh Münzprüfer Dietmar Trenner GmbH: W 6000

Mechanical coin selector
W 6000

Product description

An optimum performance combined with a minimum mounting height are characteristics of the mechanical coin selector W 6000. This selector is suitable for all machines accepting coins/tokens up to 30 mm diameter and 3.5 mm thickness. A modular design will match your application for any host machine. A variety of frontplates, opto couplers, micro switches, magnetic slot locking mechanisms are available and can be combined according to individual requests. A special version for kiddy rides completes the range of products

Highlights

Compact design
Stable and reliable
For all coins and tokens up to 30 mm in diameter
For over 100 currencies

Product enquiry

Specifications

Front plates for single coin selectors
length x width (mm)

F68.31	88.6 x 100.8
F70	95.3 x 57 with threaded bolts
F77.1	103.1 x 104.9
F2	107 x 40
F12.1	114.5 x 84
F3	117 x 60
F10	117 x 86.5
F4.2	129 x 52
F6.1	150 x 50
F57.1	155 x 63

Front plates for dual coin selectors
length x width (mm)

F69.2	88.6 x 100.8
F79.1	103.1 x 104.9
F12.2	114.5 x 84
F42	117 x 86.5

Components

W6000 = W 6000 coin selector
i = Optical switch
S = Micro switch
M1.1 = Electromagnetic slot locking device, normally closed

Voltage: 24, 115 or 230 volts AC, 12 or 24 Volt DC

Example for ordering

F3-W6000-S12-M1.1 230 volts AC for 50 Cents:
Coin selector W 6000 with front plate, 117 x 60 mm, with micro switch, electromagnetic slotlocking for 230 volts AC, normally closed for acceptance of 1 x 0,50 Euro.

Product examples and Accesories

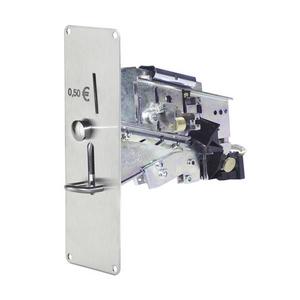

Coin selector with optocoupler F6.1-W6000-i4-D

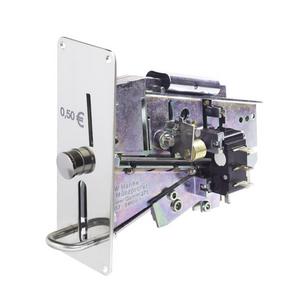

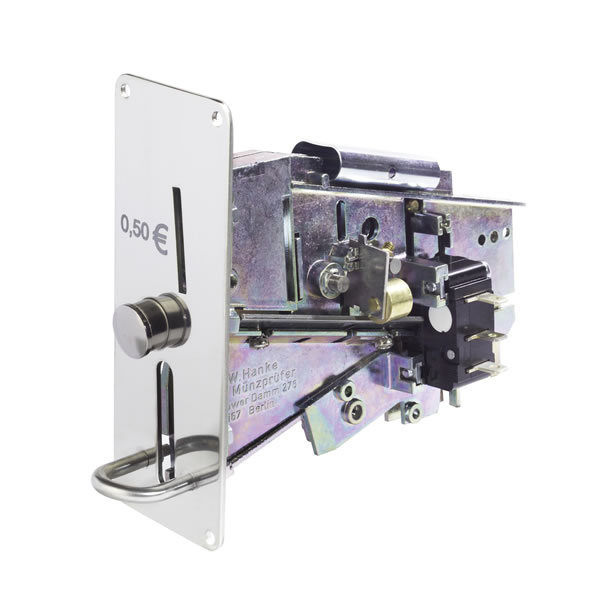

Coin selector with micro switch F2-W6000-S12

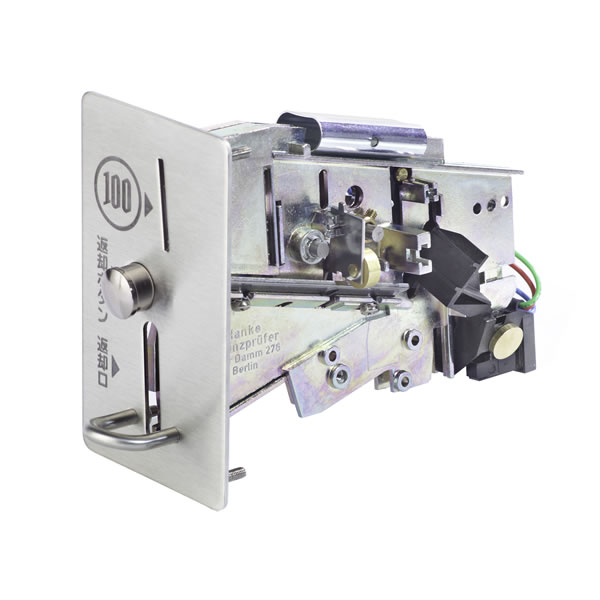

Coin selector with optocoupler F70-W6000-i4-D

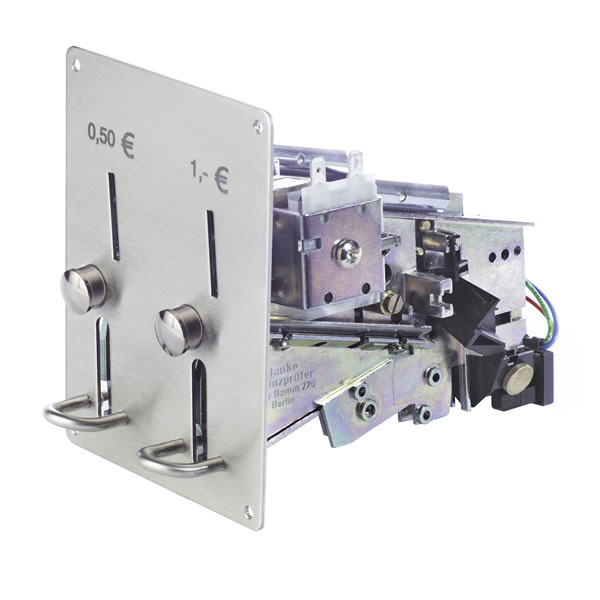

Dual coin selector F42-W6000-i4-D-M2.1/ W6000-i4-D-M2.1

Kicker solution adjustable for up to 3 x 1 monnaies

MADE IN BERLIN
